Advanced and Versatile Energy Meter Testing System

Name: Advanced and Versatile Energy Meter Testing System
Brand: GENY
Price: 1 USD

Advanced and Versatile Energy Meter Testing System Manufactures

Brand Name : GENY

Model Number : YC1893D

Certification : ISO, CE

Place of Origin : CHINA

Payment Terms : L/C,T/T,D/P

Supply Ability : 100/Year

Model NO. : YC1893D

Display : Digital

Installation : Direct Connected

Usage : Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment : Three-phase Three-wire

Theory : Electronic Meter

Power Meter Connection : Terminal

Measured Signal : Pulse Peak

Type : Energy Meter

Customized : Customized

Trademark : GENY

Transport Package : Plywood Case

Specification : 12.4CBM

Origin : China

HS Code : 9030849000

Port : Guangzhou, China

Contact Now

Advanced and Versatile Energy Meter Testing System

Features& Functions

Advanced Meter Testing: Supports 3P4W, 3P3W meter types. Tests active, reactive, cross-connected reactive power precisely.
Innovative Testing: Optionally integrates ICT for three-phase meters with closed I-P links. Can do neutral current testing.
Versatile Interfaces: Each meter position has RS232 and Ethernet ports for optional auto calibration of electronic meters.
Flexible Modes: Accommodates mechanical, electronic-mechanical, electronic meters via auto, semi-auto or manual operations.
Durable Build: Made of aluminum alloy, lightweight, robust, corrosion-resistant.
Efficiency Boost: Automates rotor mark positioning on mechanical meters' discs.
Simplified Control: Synchronized scanning heads make testing intuitive.
Comprehensive Tests: Covers start-up, creeping tests and meter constant measurement.
Strong Safety: Has overload, short voltage, open current circuit protection.
Intuitive Software: Compatible with Windows 10 and XP, includes key functional modules for testing and data transfer in multiple formats.
Certified: Meets EU health and safety standards, has CE marks.

Product Parameters

Application Conditions and Requirements
Environment			Power Requirement	Safety
Operation	Humidity	Altitude	Voltage Supply	IP Class	Conformity
Temperature
-10ºC--+40ºC	0.5	<2500m	3x220/380V±10%(or customized)	IP30	CE conform
			50/60Hz±2Hz

Type	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Reference Standard Meter	SZ-03A-K8
Scanning Head	YCG-2-series
Voltage
Test voltage output(Phase-Neutral)	3x(24V-300V)(or customized)
Power of the voltage output	Max.3x100VA	Max.3x250VA	Max.3x500VA	Max.3x1000VA
Resolution	Better than 0.01%of full scale value of range
Setting accuracy	Better than 0.05%at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Current
Test current output	3x(1mA-120A/200A)
Power of the current output	Max.3x250VA	Max.3x500VA	Max.3x1000VA	Max.3x2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Phase angle
Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Advanced and Versatile Energy Meter Testing System

For more information about our products, please refer to the following URL:https://www.genymetertestequipment.com/h-col-103.html

Product Tags:

Advanced Energy Meter Testing System

Versatile Energy Meter Testing System

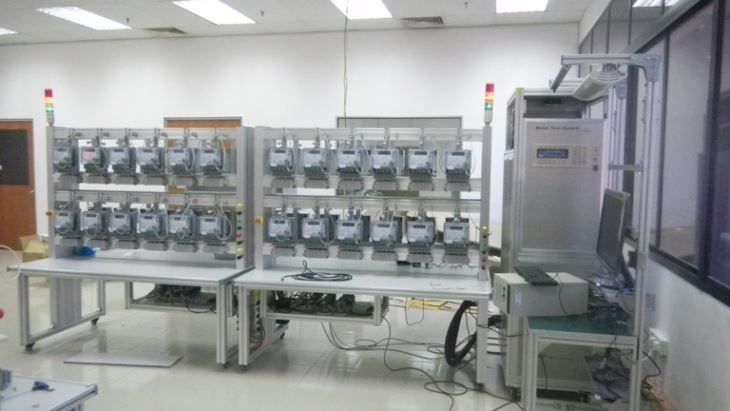

Advanced and Versatile Energy Meter Testing System Images
