Brand Name : GENY
Model Number : CPMT-CCS2DC
Certification : ISO, CE
Place of Origin : CHINA
Payment Terms : L/C, T/T, D/P
Supply Ability : 300/Year
Model NO. : CPMT-CCS2DC
Power : Electricity
Customized : Customized
Trademark : GENY
Origin : China
HS Code : 9030849000
Port : Guangzhou, China
| Application Conditions and Requirements | ||||
| Environment | Safety | |||
| Working Environment: | Storage Environment | IP Class | IP Class | Conformity |
| -20℃ to 50℃, <90%RH | -30℃ to 60℃, <90%RH | 51 | 51 | IEC |
| Model | CPMT-CCS2DC | Model | CPMT-CCS2AC | |
| Voltage Measurement | ||||
| Range | DC 0V to 1000V | AC 0 to 456V | ||
| Accuracy | ±0.05%RD (30V ≤ U ≤ 1000V) | ±0.05%RD (0 to 456V) | ||
| Resolution | 0.005%RG | 0.001V | ||
| Current Measurement | ||||
| Range | DC 0A to 250A | 0 to 72A | ||
| Accuracy | ±0.05%RD (5A ≤ I ≤ 250A) | ±0.05%RD (1 to 72A) | ||
| Resolution | 0.005%RG | 0.00001A | ||
| Electrical Energy Measurement | ||||
| Accuracy | ±0.05%RD (30V ≤ U ≤ 1000V, 5A ≤ I ≤ 250A) | ±0.05%RD (0 to 456V, 1 to 72A) | ||
| Frequency Measurement | ||||
| Range | - | 45 to 65Hz | ||
| Accuracy | - | ±0.05%RD | ||
| Resolution | - | 0.0001Hz | ||
| Power Factor Measurement | ||||
| Range | - | 0-1 | ||
| Accuracy | - | ±0.05%(0.1-1) | ||
| Resolution | - | 0.00001 | ||
| Temperature Measurement | ||||
| Range | ‘-40~125℃ | ’-40-80℃ | ||
| Accuracy | ≤+0.3℃0.1℃ | ≤±0.5 ℃ | ||
| Resolution | 0.1℃ | 0.1℃ | ||
| Phase Measurement | ||||
| Range | - | 0-360° | ||
| Accuracy | - | ±0.1° | ||
| Resolution | - | 0.01° | ||
| Humidity Measurement | ||||
| Range | 0-100% | 0-99.9% | ||
| Accuracy | ±4% | ±3% | ||
| Resolution | 1% RH | 0.1% RH | ||
| Atmospheric pressure measurement | ||||
| Rangey | 300~1100hPa(-500~+9000m) | 300~1100hPa(-500-+9000m) | ||
| Relative Accurac | +0.24hPa(+2m) | ‘+0.24hPa(±2m) | ||
| Pulse Frequency Output/lnput | ||||
| Output energy pulse frequency | 0.2Hz-160kHz | ≤66 kHz | ||
| Input energy pulse frequency | Max.50kHz | ≤ 500Hz,level: 0-5V | ||
| Others | ||||
| Clock Accuracy | ≤0.2ppm | ≤0.2ppm | ||
| Power supply | Lithium battery: DC 12V; External: AC 220V,50Hz | Lithium battery: DC 12V; External: AC 220V,50Hz | ||
| Dimension(L*V*H) | 570mmx416mmx282mm | 570mmx416mmx282mm | ||
| Weight | 18.5KG | 17KG | ||


|   |

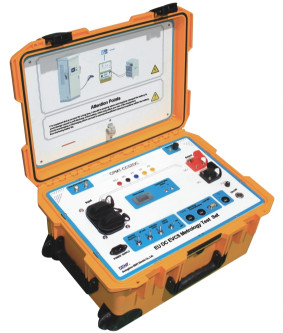

| GPS Clock Module Portable Reference Standard For DC EVCS Metrology Test Set Images |
